A fabric Ceiling
The fire protection grade reaches internationally recognized Class A fireproof film.
Thinkness：0.2mm
Width：customClass

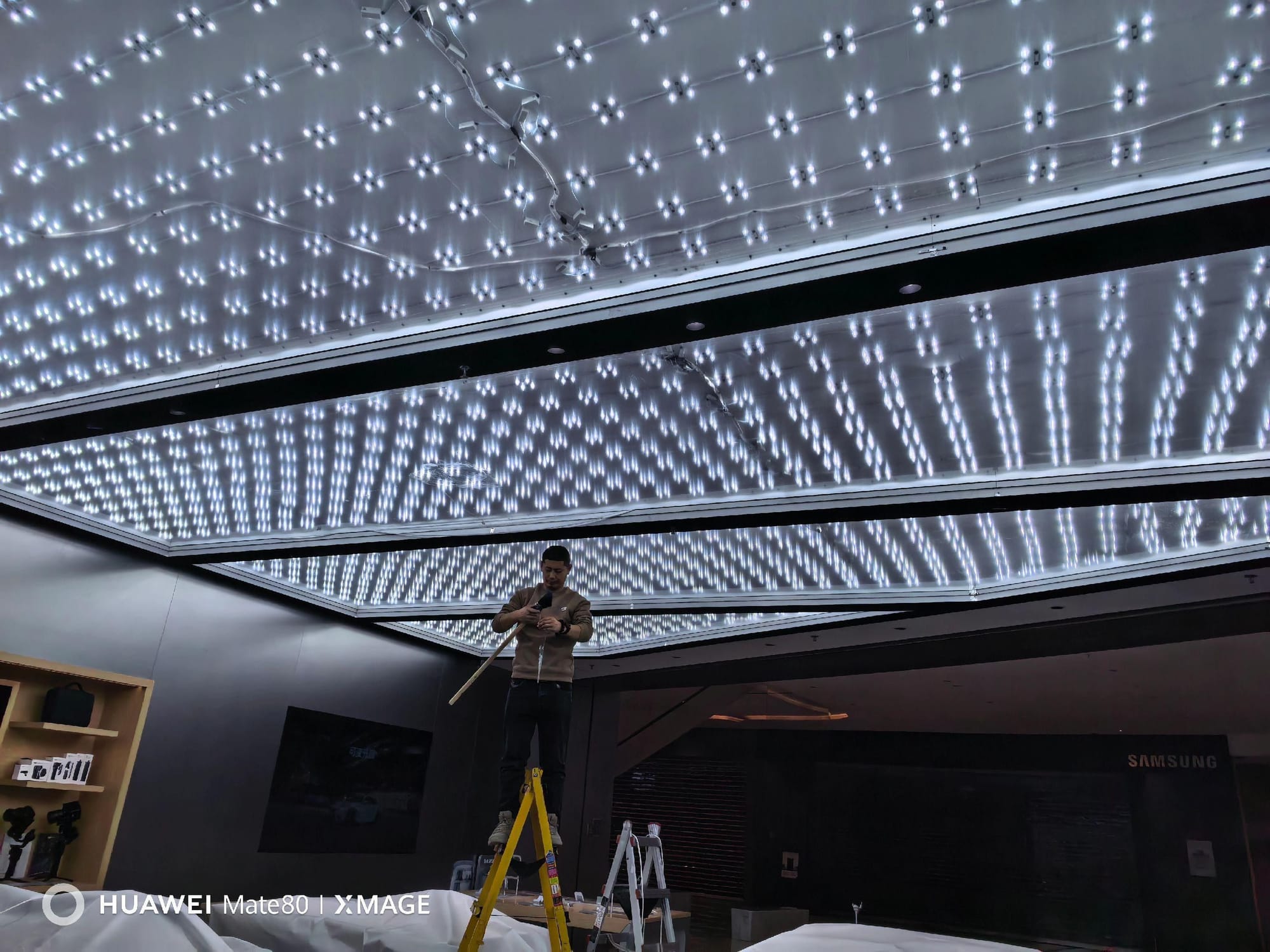

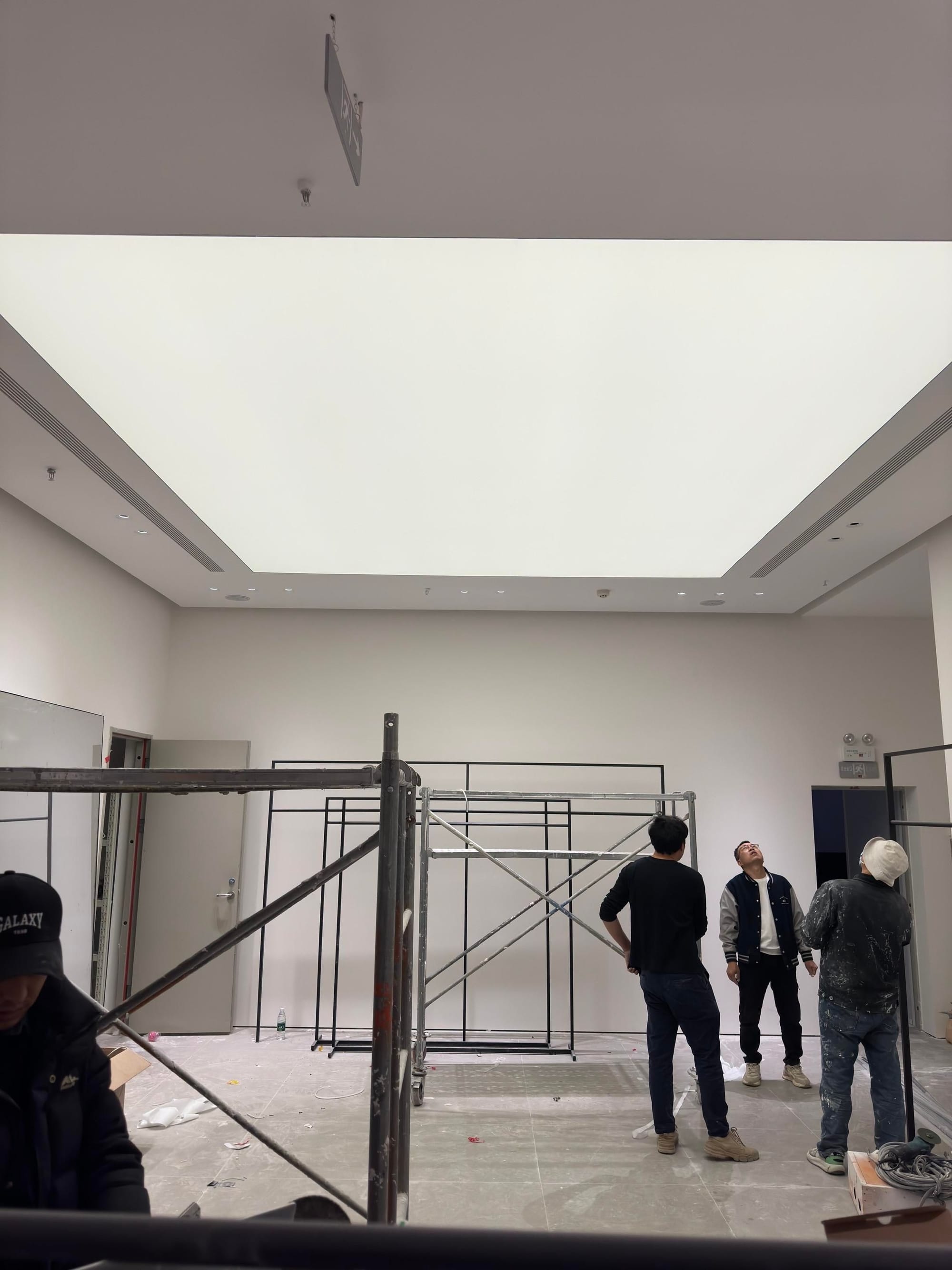

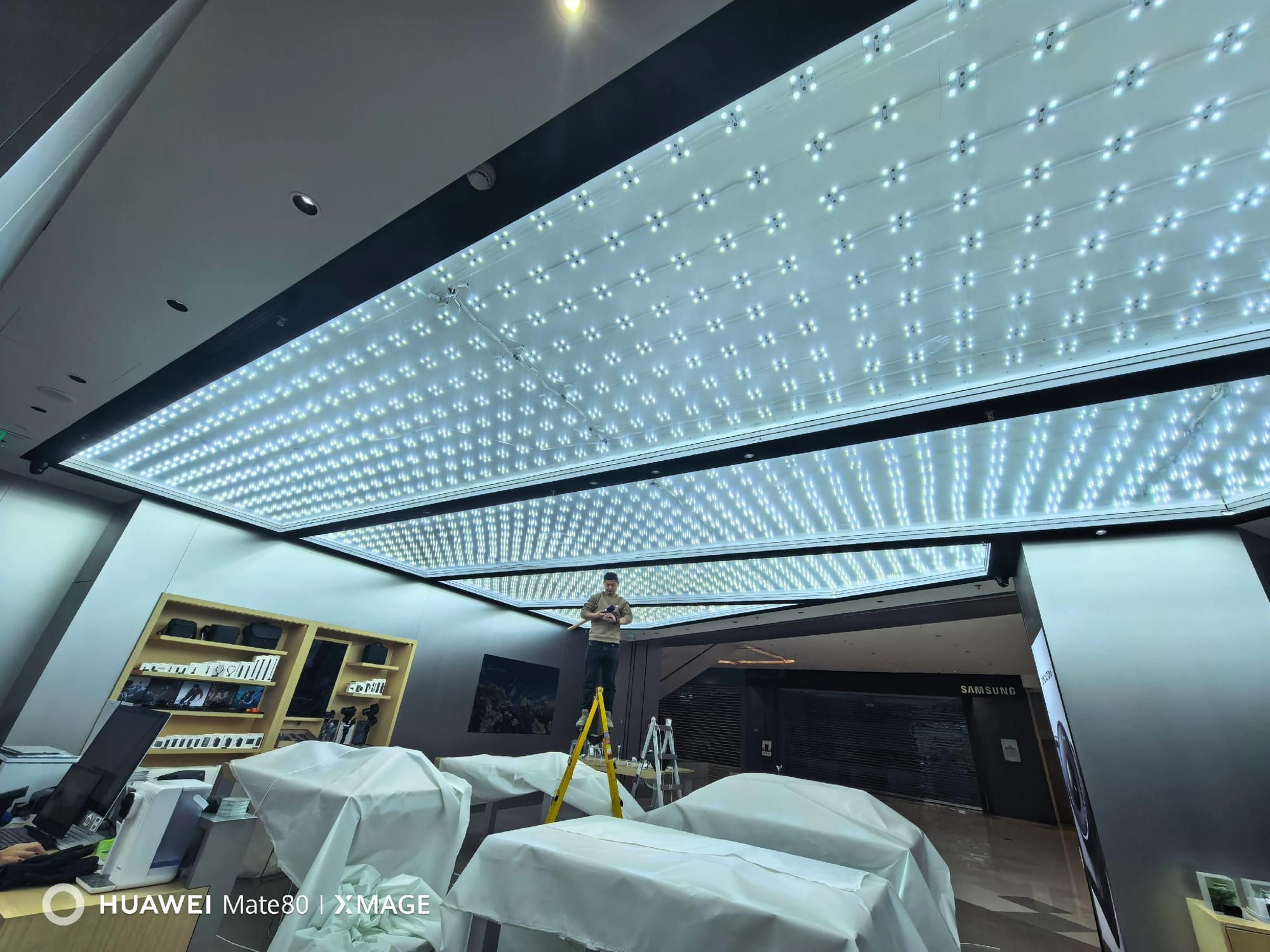

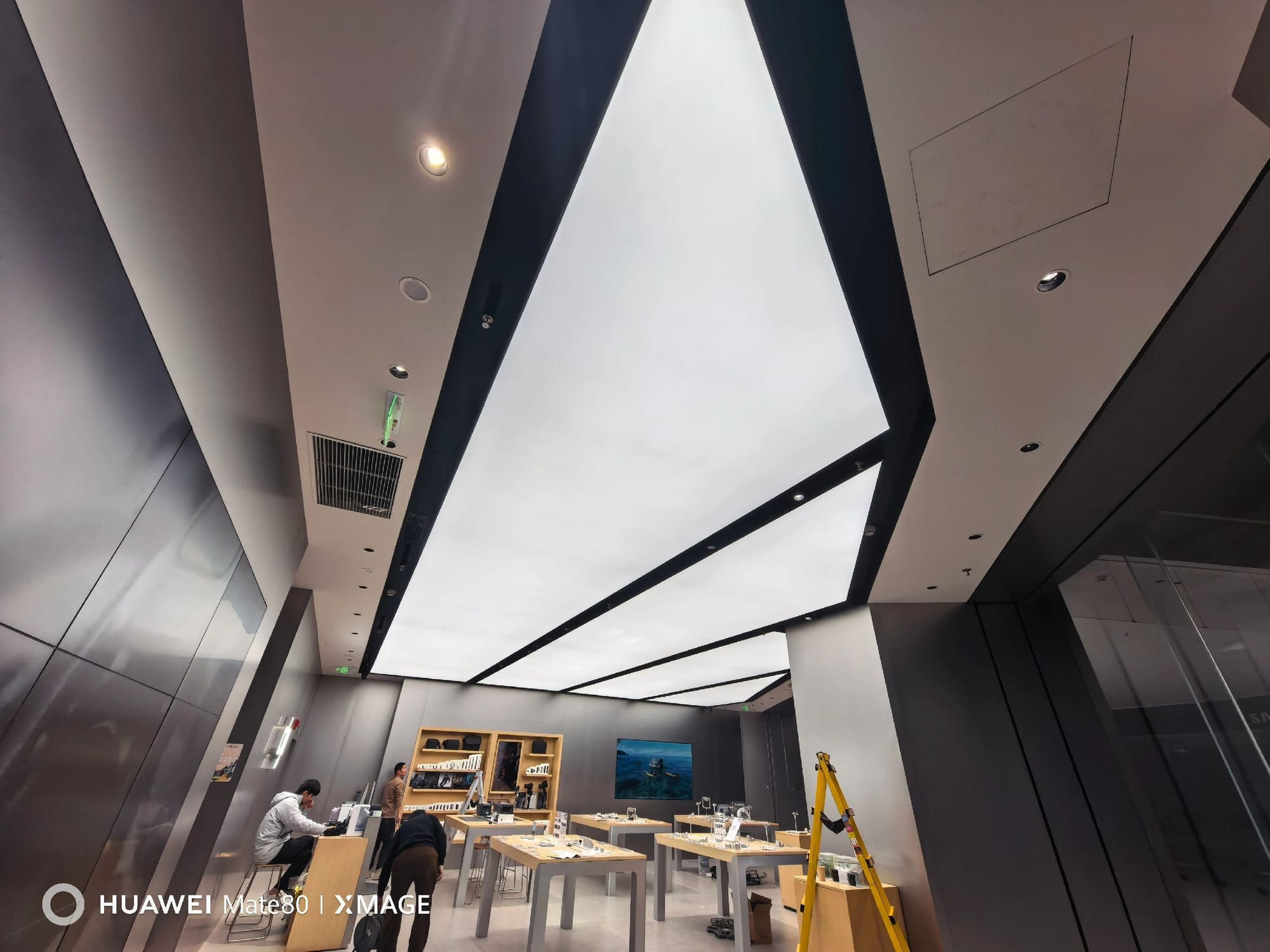

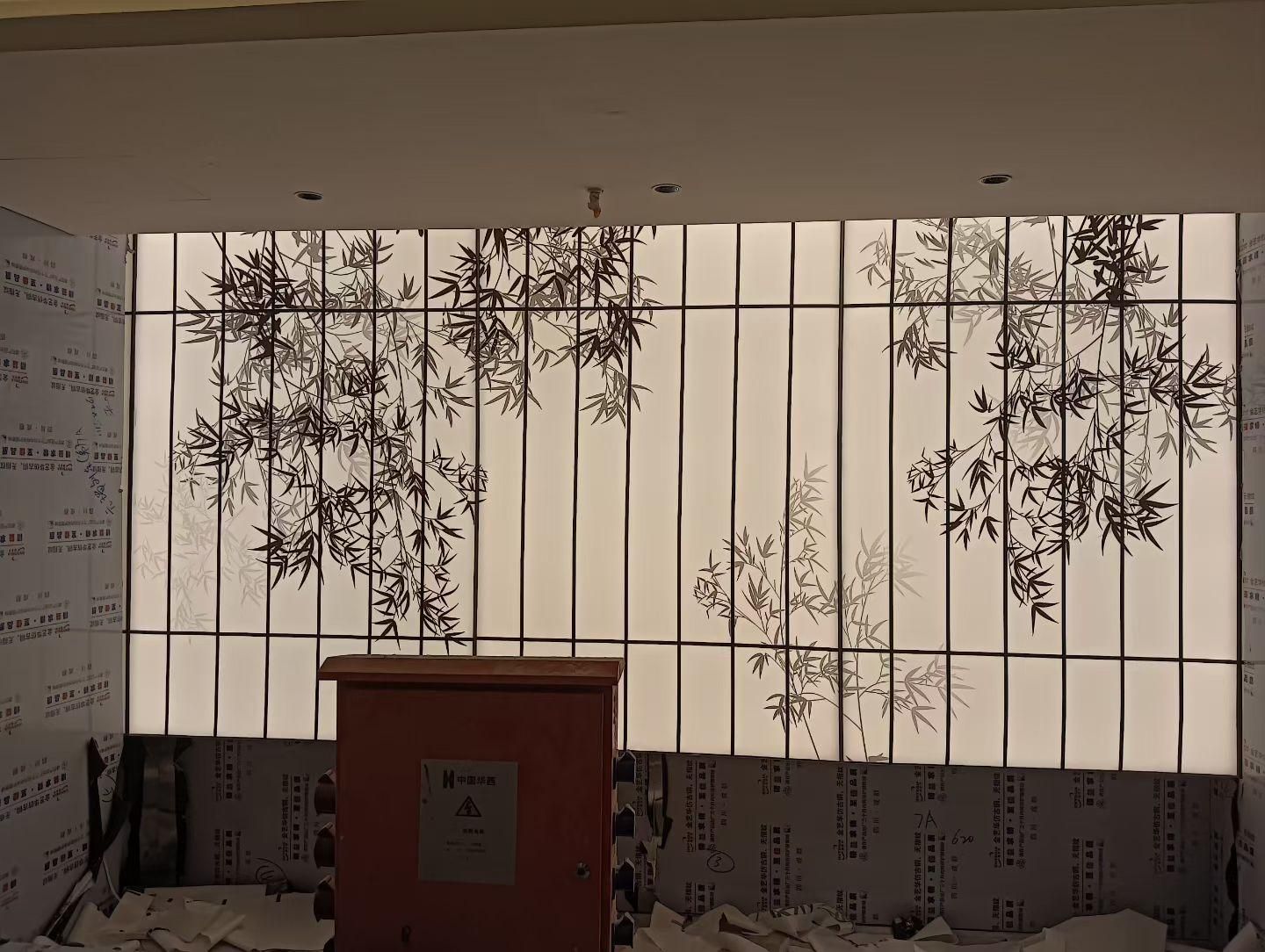

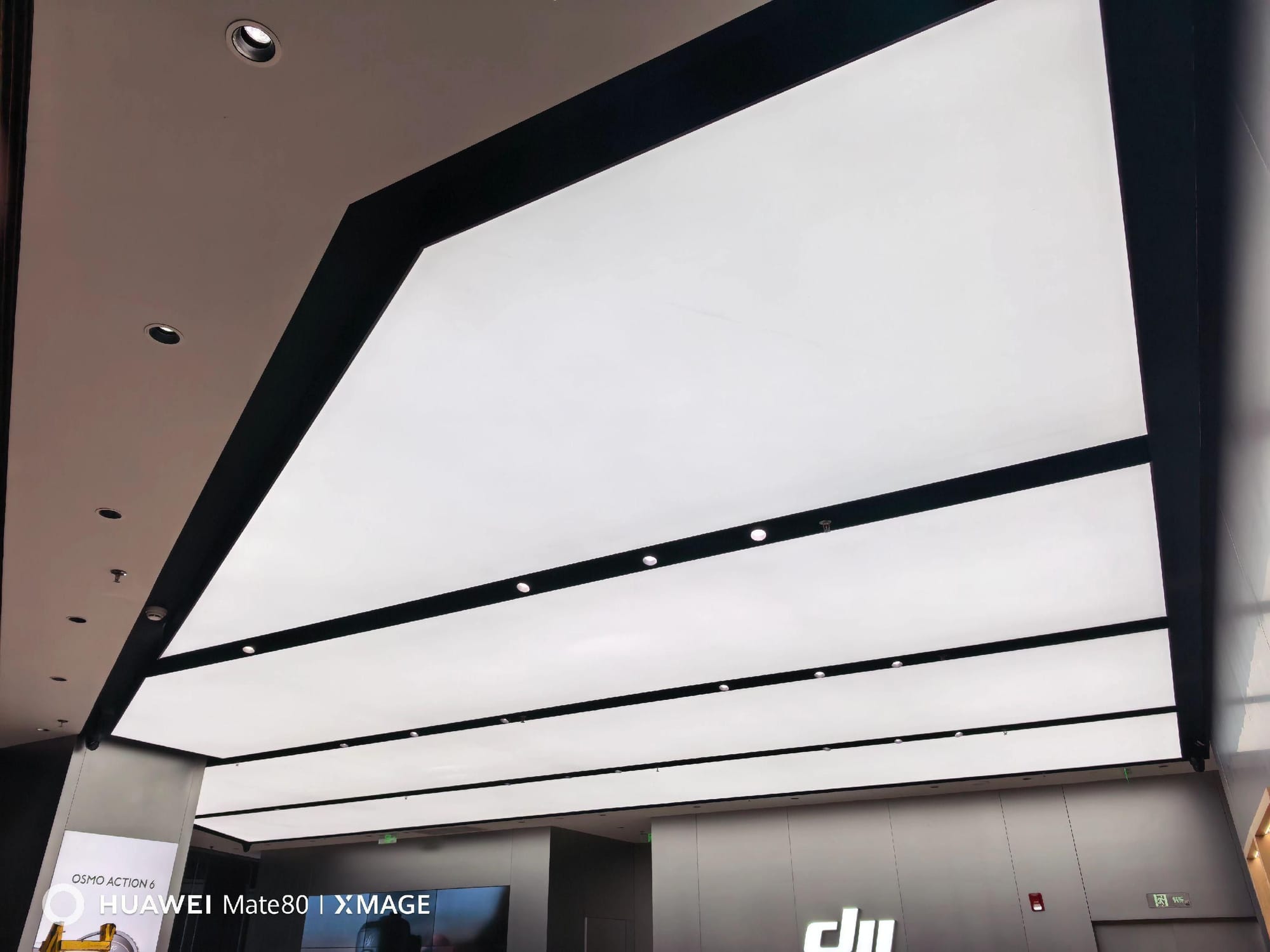

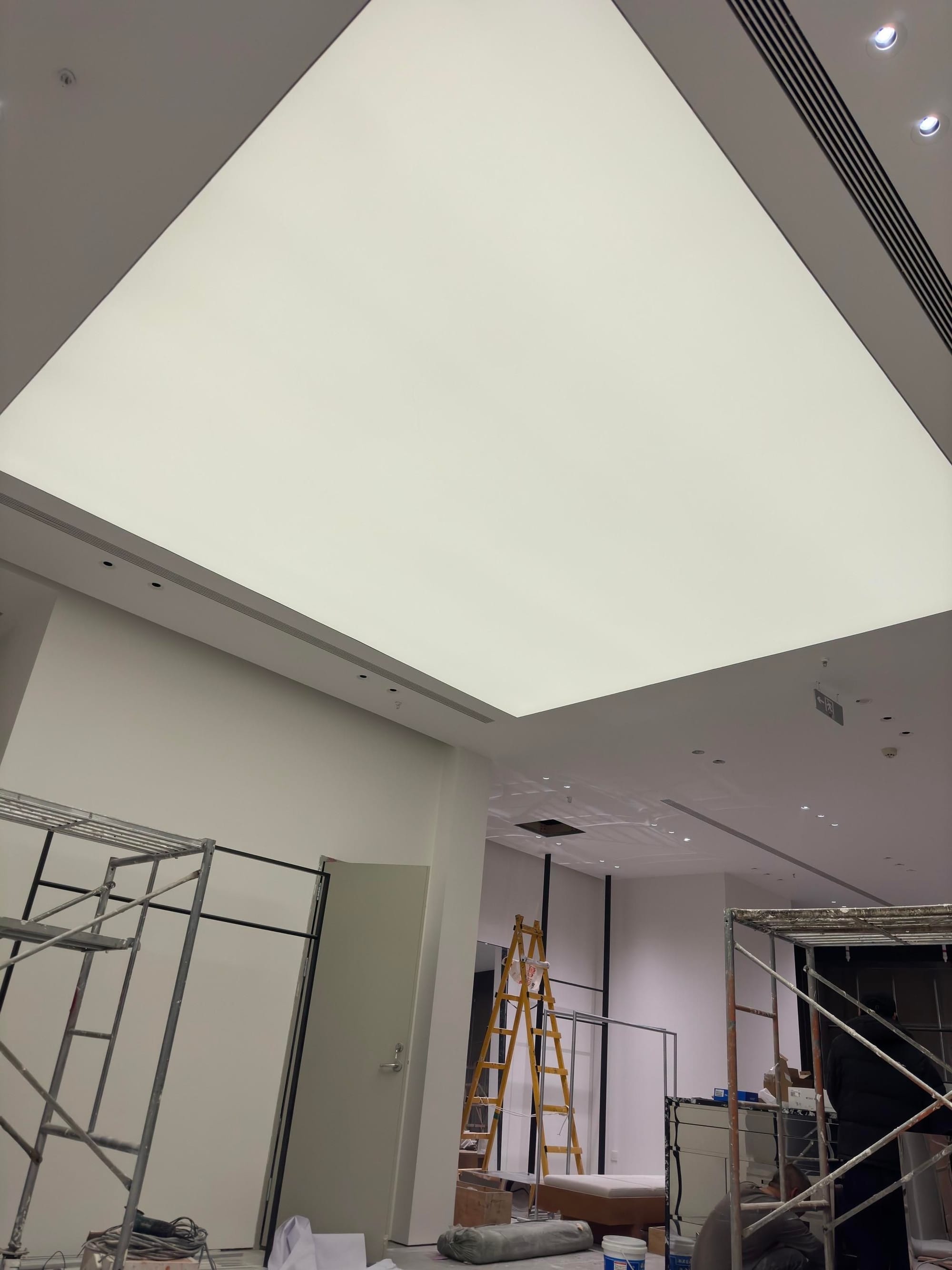

A fireproof film is woven from glass fiber and has excellent fire resistance. It cannot be ignited by open flames and is specially designed for environments with high fire protection requirements.Class A fireproof film is often used for soft film ceiling, and it also supports pattern printing and is suitable for fabric light boxes
fiberglass fabric stretch ceiling - product datasheet
Fiberglass Fabric Stretch Ceiling - Product Datasheet
| Technical Performance | FX111 | Standards |
|---|---|---|
| Yarn | Fibre Glass | - |
| Coating | Silica gel | - |
| Weight (g/m²) | 220±10 | GB/T9914.3 |
| Width (cm) | 160/500 | - |
| Tensile Strength (warp/weft) | Warp 2161/1939 daN/5mmWeft 1891/1769 daN/5mm | GB/T7689.5 |
| Tear Strength (warp/weft) | 100/100 daN | DIN53363 |
| Thickness (mm) | 0.2±0.02 | GB/T7689.1 |
| Transmission (%) | 48±2 | JLSZ 8722 |
| Flame Retardant Class | A2 | GB8624-2012 |
| Extreme Working Temperatures | -50°C / +230°C | - |
| Acoustic Absorption (w/ Air Layer of 100mm) | 0.42 | - |
| Visible Light Performance | TV25% RV64% AV11% | ASHRAE Standard 74-1988 |
| Optical Solar Properties | TS36% RS52% AS12% | ASHRAE Standard 74-1988 |
| Low Emissivity Treatment Aluminium (Colour On The Back Side) | ≤0.5 | ASTM1585 |
| Delta Color Temperature (ΔT) | -100K | - |
| UV Rejection Rate | >90% | - |
| IR Shielding Percentage | >85% | - |
| Quality Management System | ISO 9001 | - |
| Environmental Management System | ISO 14001 | - |

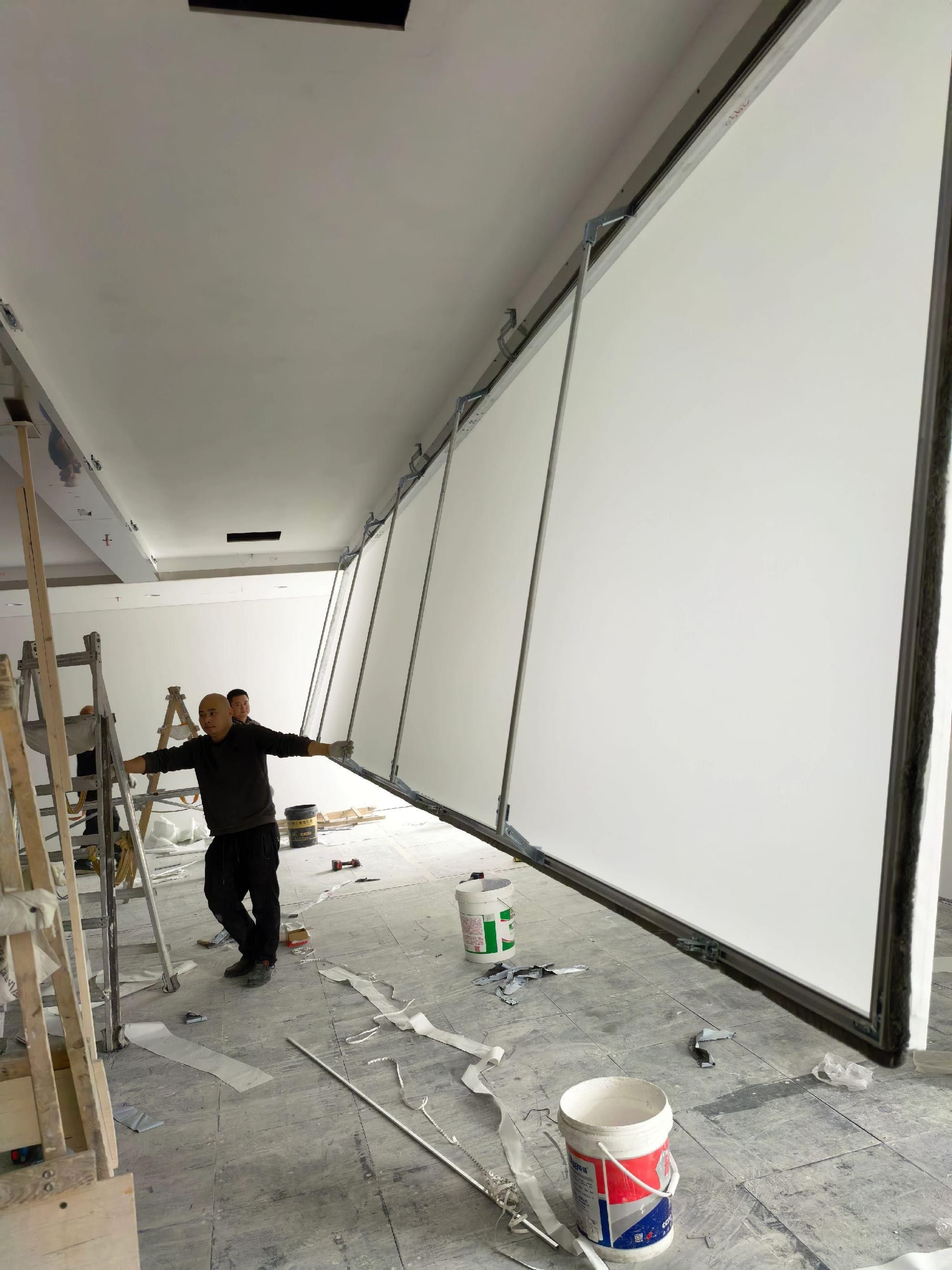

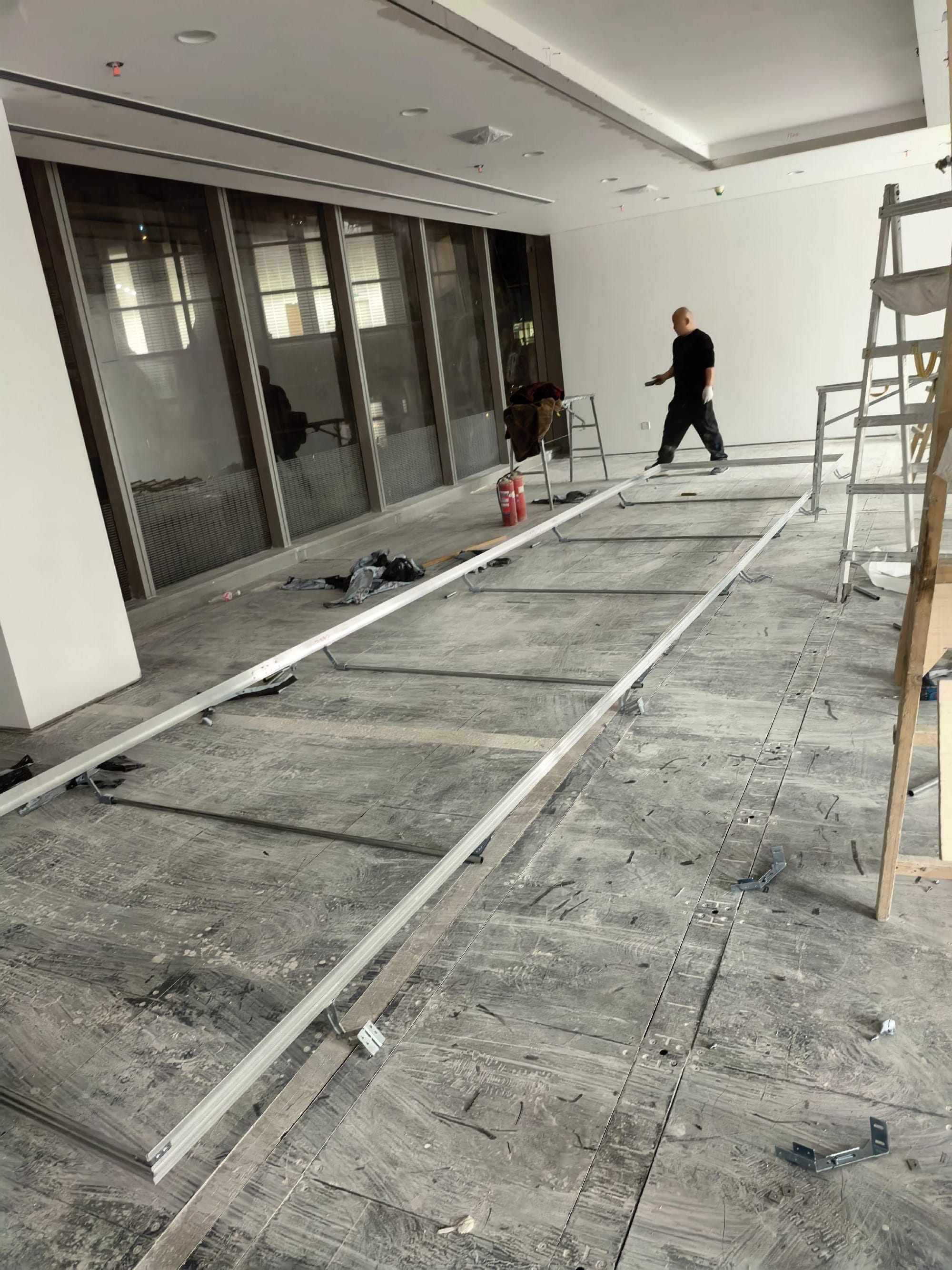

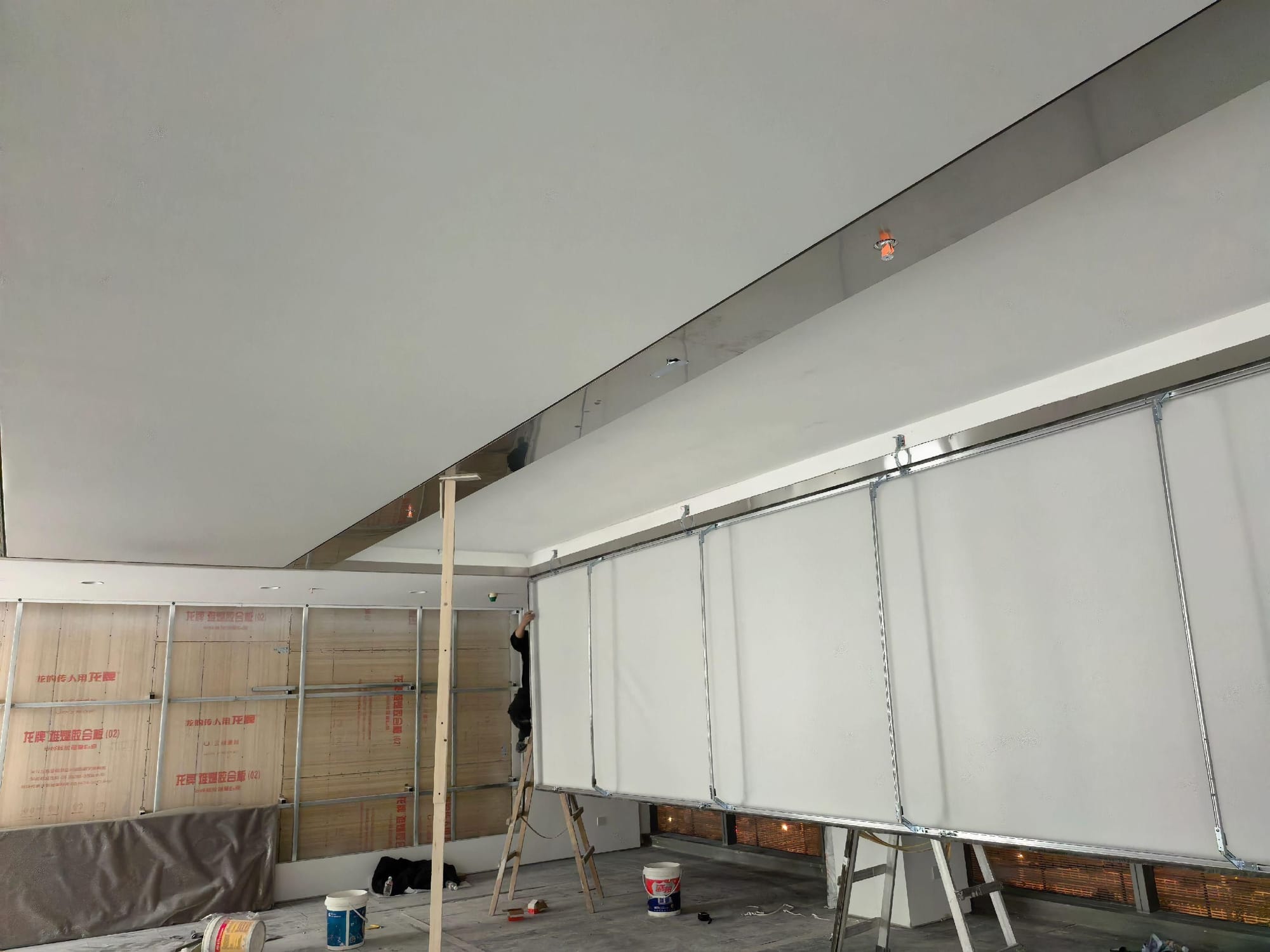

application
Recommendations

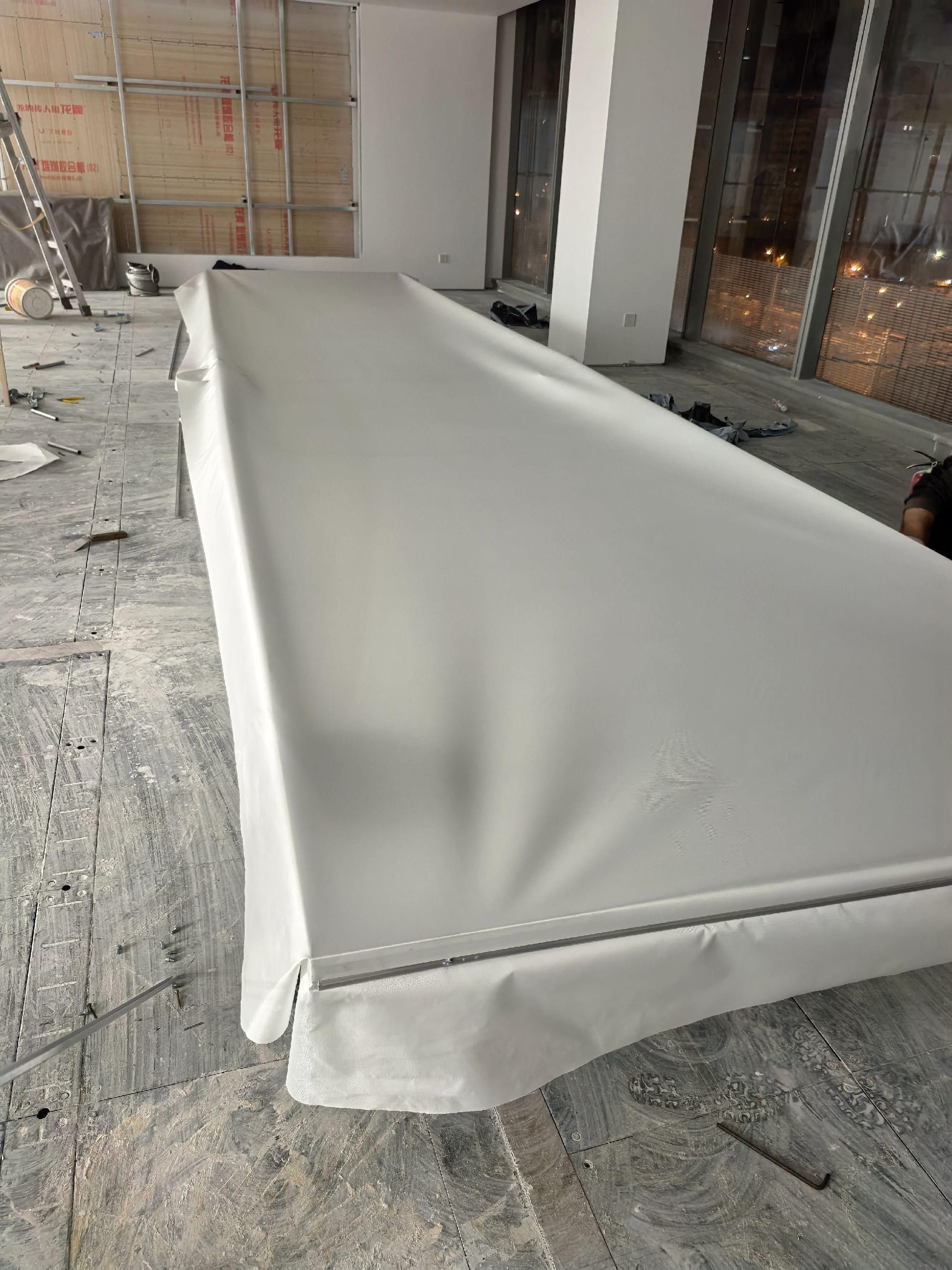

- Fabric Processing: Sew or weld using welding strips (please refer to the processing guide).
- Storage & Handling: Arbalest A-Class membrane must be stored flat or rolled. Avoid folding and protect from water.
- Cleaning & Maintenance: If cleaning is required for Foxygen A-Class membrane, use alcohol and a white soft cloth for wiping.
disclaimer
All technical indicators are average values with an allowable error of ±5%.
The buyer assumes full responsibility for the use of this product to third parties.
The buyer must manufacture and install the product in accordance with local laws, regulations and standards. For the manufacturer's warranty commitments for this product, please refer to the relevant warranty terms. The technical indicators provided are obtained based on common design and practical tests, for reference only.
We reserve the right to upgrade related product technologies or change indicators. The relevant buyer shall verify the validity of the indicators in a timely manner.
