Stretch Ceiling

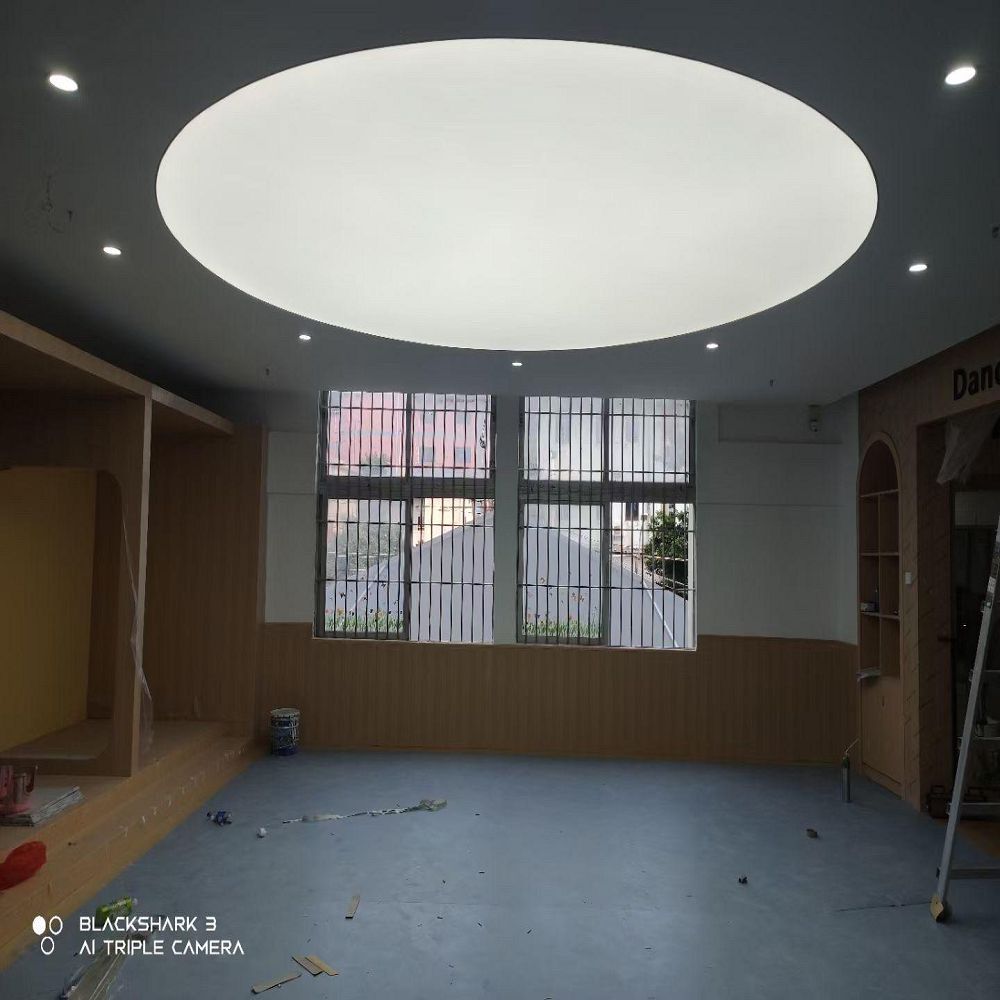

A stretch ceiling is a modern suspended ceiling system consisting of a lightweight PVC or fabric membrane custom-cut to fit a room's exact dimensions, stretched and clipped onto a slim perimeter aluminum track.
It delivers a perfectly smooth, seamless surface and is available in a wide range of finishes — matte, gloss, satin, translucent, or printed — making it a versatile choice for both residential and commercial interiors. Fast to install, low-maintenance, and highly durable, stretch ceilings offer an elegant alternative to traditional drywall or gypsum ceilings.
Free Samples，Free Training，One Stop Solution
السقف المشدود - ورقة البيانات الفنية
| FOXYGEN® | |
| Trade name | Foxygen |
| Width | PVC film width 1.5M/1.8M/2.0M/2.5M/3.2M/4.0M/5.0M |
| Net Weight / sqm | 240g/m2 ± 5% to 320 g/m2 ± 5% |
| Maximum tensile strength | up to 17 MPa |
| Ultimate tensile strength | 30 N (both lengthwise and edgewise) |
| Afford Weight | 195kg/square meter |
| Appearance | Opaque |
| Working temperat ure | -30~65 degrees |
| Color | White or Coloful |
| Light transmission rates | 75%(translucent film),25-30%(lacquer film),35-40%(matte film), 10- 25%(suede film) |
| Light reflection rates | 21 % |
| Thickness | 0.18mm/0.22mm/0.25mm ±10 percent(matt,satin,glossy/0.18mm） |
| Light absorption coefficient | 30 percent (film canvases with mirror effect) |
| Shore hardness number | 41±2 |
| Fire class | BS2d0 in China |
| Resistance to humidity | Yes |
| Packaging | Customized |
| Disassembled & Reassembled | Yes 100%, completely disassembled and reassembled |
| Ecology | 100 % recyclable - phtalates free - cadmium free - arsenic free - mercure free … Covering & print are A+ certified |
| www.foxygenstretchceiling.com | |
تطبيق
التوصيات
- Fabric Processing: Sew or weld using welding strips (please refer to the processing guide).Cut or weld the stretch ceiling film using a heat welding machine or high-frequency welding equipment to ensure seamless and airtight joints. Refer to the installation guide for detailed processing procedures.
- Storage & Handling: Stretch ceiling film rolls must be stored in a cool, dry environment, away from direct sunlight and heat sources. Store in rolled form — do not fold or crease the film. Keep away from moisture and sharp objects to prevent surface damage.
- Cleaning & Maintenance: Finished Products,If cleaning is required, use a soft, damp cloth or a mild non-abrasive detergent diluted with water. Gently wipe the surface without applying excessive pressure. Avoid the use of solvents, alcohol, or abrasive cleaning agents, as these may damage the film's surface finish.
